Refine Activa/ Activa S

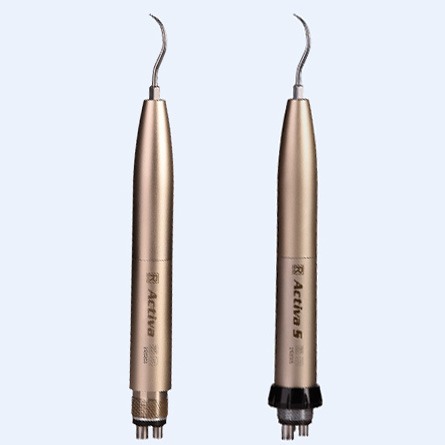

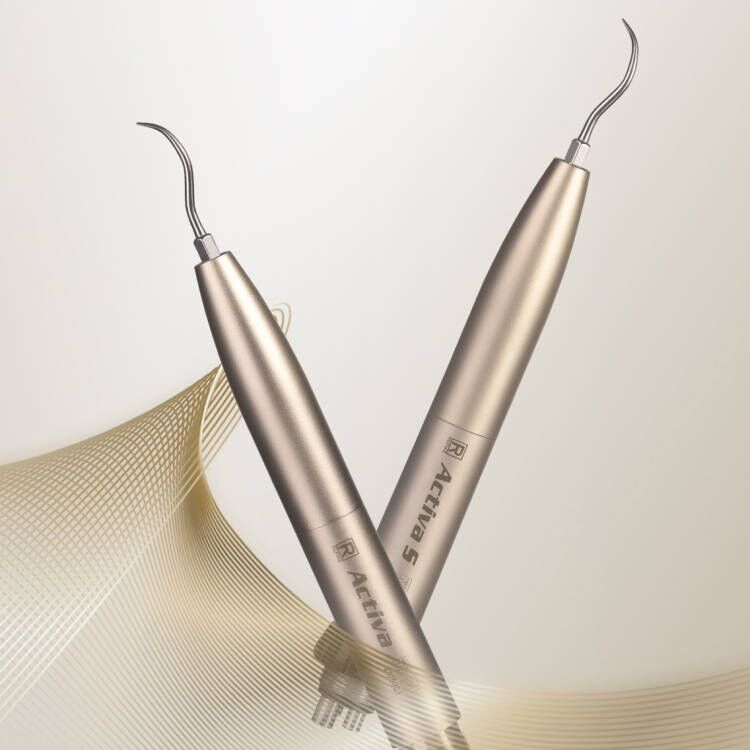

Refine Activa / Activa S Dental Air Scaler Compatible with Midwest / KAVO

Features:
Gentle and soft treatment, comfortable for your patients.
REFINE Activa provides the true wide elliptical strokes vibration trajectory, minimize the development of heat and noise, brings a comfortable and gentle treatment experience.
ln addition, as the handpiece operates with a low application pressure, tooth tissue is protected, and the treatment is more precise. REFINE Activa is particularly suitable for pain-sensitive patients.
4800-5200Hz high frequency vibration, maximum 240um amplitude, powerful and precise, operation is more convenient.

Technical Parameter：
Model: Activa / Activa S
Inlet air pressure: 250 – 400kPa ( 2.5 – 4 bar)
Inlet water pressure:100-200 kPa ( 1.0-2.0 bar)
Vibration frequenc: 5 – 6 KHz
Air flow volume: 25-35min
Water flow volume: 20-50 ml/min
Noise: ＜80db
Operating Condlitions: 10℃ – 40℃, Relative Humidity: 30% – 75%, Air Pressure: 500hPa -1060hPa,
Life time: 5 years
